คุณสมบัติสินค้า
| Model | Altos BrainSphere™ R315 F6 (US.RWVTL.001) |
| GPU | – |
| CPU | AMD EPYC™ 9005/9004 Series Processors. , TDP up to 360W |
| Number of Processor | 2 |
| Memory | 24 DIMM slots
Up to 6TB ECC DDR5 6400 MHz ECC RDIMM
|
| I/O Expansion | 4 PCI-E 5.0 x16 slots
1 PCI-E 5.0 x8 slot Maximum support is 2 RTX Pro 6000 Max-Q/L40s/RTX 6000ada 2 OCP 3.0 x16 slots 2 M.2 2280 PCI-E 3.0 slots(support NVMe )
|
| Network | Default not have on-board NIC, need optional OCP or PCI-E Lan card to support
Dual 1GbE RJ45 Ports OCP 3.0 (options) Dual 10GbE RJ45 Ports OCP 3.0 (options) Dual 25GbE SFP28 Ports OCP 3.0 (options) Dual100GbE SFP28 Ports OCP 3.0 (options) Dual1GbE RJ45 Ports PCI-E(options) Quad1GbE RJ45 Ports PCI-E (options) Dual 10GbE RJ45 Ports PCI-E (options) Dual 10GbE SFP+ Ports PCI-E (options) Quad10GbE SFP+ Ports PCI-E (options) |

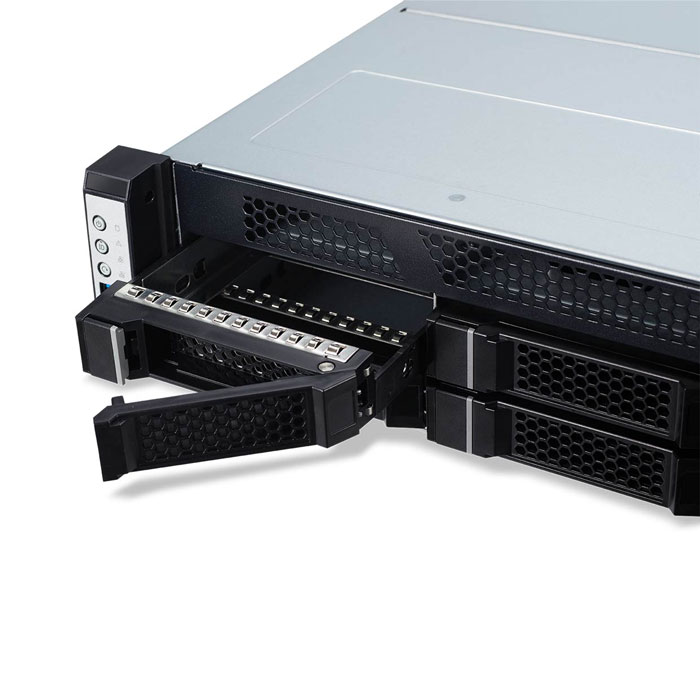

| Storage | 4 x 3.5” /2.5” SATA and 2 x 2.5” SATA hot-swappable bays (SAS card is required to enable the SAS drives)
12 x 3.5” /2.5”SATA/SAS hot-swappable bays (option HBA or Raid Card) 12x 2.5” NVMe hot-swappable bays |

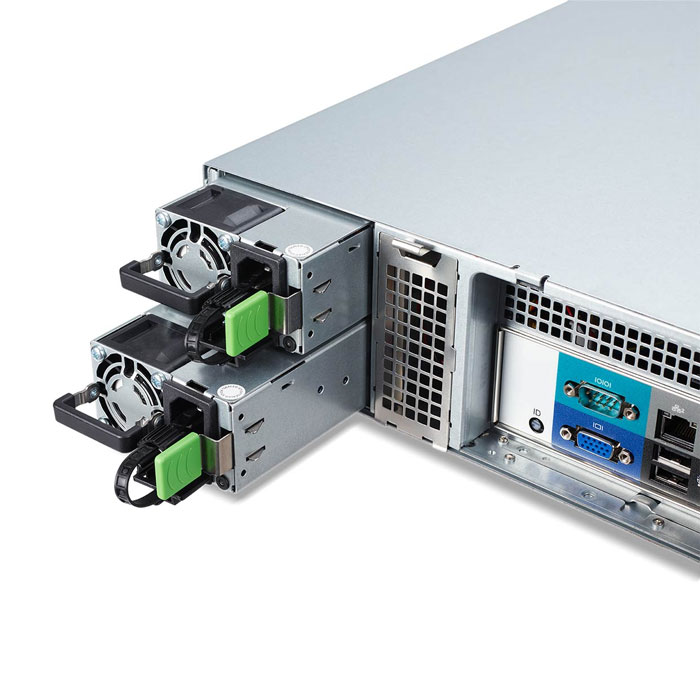

| Power Supply | 2400W 80Plus Titanium CRPS Redundant power supply |
| OS Support | Windows:Microsoft® Windows Server 2025 /2022
Linux:REHL 10/9.5, Ubuntu 24.04 64bit Server |
| Dimension | 770 (D) x 438 (W) x 87 (H) mm |
| Warranty | 3 Year warranty Part & Labor, 5×8, Onsite Service NBD Thailand |
