คุณสมบัติสินค้า
| Model Name | RT-BE58U |
| Network Standard | IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) WiFi 7 (802.11be) IPv4 IPv6 |
| Product Segment | BE3600 ultimate BE performance : 688+2882 Mbps |
| WiFi Data Rate | 802.11a : up to 54 Mbps 802.11b : up to 11 Mbps 802.11g : up to 54 Mbps WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps WiFi 7 (802.11be) (5GHz): up to 2882 Mbps |
| Antenna | External antenna x 4 |
| Transmit/Receive | 2.4GHz 2×2 5GHz 2×2 |
| Processor | 2.0 GHz quad-core processor |
| Memory | 256 MB Flash 1 GB RAM |
| Boosts Speed | OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 4096-QAM high data rate 20/40/80/160 MHz bandwidth |
| Operating Frequency | 2.4G Hz / 5 GHz |
| Operating Mode | Wireless router mode Access point mode Media bridge mode |

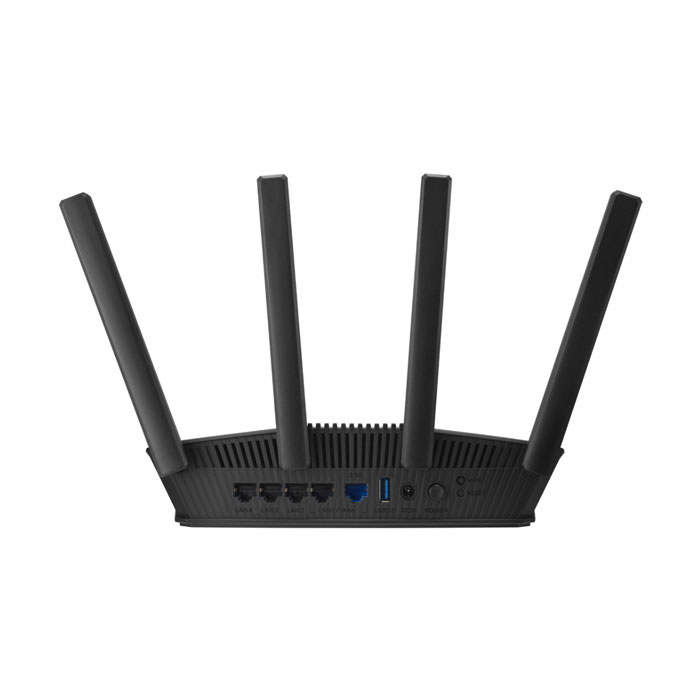

| I/O Ports | RJ45 for 2.5 Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4, USB 3.2 Gen 1 x 1, |
| Buttons | WPS Button, Reset Button, Power Button |
| LED Indicator | Power x 1 WAN x 1 LAN x 1 2.4GHz WiFi x 1 5GHz WiFi x 1 |
| Power Supply | AC Input : 100V~240V (50~60Hz) DC Output : 12 V with max. 2 A current |
| Package Content | RT-BE58U RJ-45 cable Power adapter Quick Start Guide Warranty card |
| Product Weight(g) | 461g |
| Product Dimensions | 238 x 193 x 59 mm |
| AiMesh | AiMesh Primary AiMesh router AiMesh node |
| Parental Control | Time Scheduling Safe browsing Parental Control Customized Internet schedule |
| Guest Network | Guest Network Support Guest Network • Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3 Guest Network Connection time limit |
| Security | AiProtection Pro VPN WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise WPS Let’s Encrypt DNS-over-TLS SSH Security Scan Firewall • Maximum Firewall Keyword Filter : 64 • Maximum Firewall Network Service Filter : 32 • Maximum Firewall URL Filter : 64 |
| AiProtection | AiProtection AiProtection Pro Malicious site blocking Two-Way IPS Infected Device Prevention and Blocking |
| VPN | Instant Guard VPN Client L2TP VPN Client OVPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server OVPN VPN Server PPTP VPN Server WireGuard |
| Traffic Control | Adaptive QoS Bandwidth Monitor Bandwidth limiter — Maximum Bandwidth Limiter Rule : 32 Traditional QoS — Maximum Traditional QoS Rule : 32 Traffic Monitor Real-time traffic monitor Wired Traffic Monitor Wireless Traffic Monitor Traffic Analyzer • Traffic Analysis Period : Daily, Weekly, Monthly Website history |
| WAN | Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP Dual WAN 3G/4G LTE dongle 4G / 5G Auto Mobile Tethering Port forwarding • Maximum Port Forwarding Rule : 64 Port triggering • Maximum Port Triggering Rule : 32 DMZ DDNS NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay |
| LAN | DHCP Server ใช่ IPTV Manually assign IP address • Maximum Manually Assign IP Address Rule : 64 Wake on LAN (WOL) |
| Wireless | UTF-8 SSID
WiFi MAC address filter • Maximum MAC Filters : 64 Wireless scheduler Airtime fairness Universal beamforming Explicit beamforming |
| USB Application | 4G / 5G Auto Mobile Tethering File System : HFS+, NTFS, vFAT, ext2, ext3, ext4 Safely Remove disk Download master Media Server Time Machine Samba Server FTP Server Shared Folder privileges |
| User Interface | WEB: ASUSWRT APP: ASUS Router APP |
| Administration | Configuration backup and restore Diagnosis tools Feedback system System log |
| Warranty | 3 years |
